Q195 6m Length ERW Hot Rolled Metal Steel Round Tube Black Iron Carbon Steel Pipe

    Buy cheap Q195 6m Length ERW Hot Rolled Metal Steel Round Tube Black Iron Carbon Steel Pipe from wholesalers

    Buy cheap Q195 6m Length ERW Hot Rolled Metal Steel Round Tube Black Iron Carbon Steel Pipe from wholesalers
    • Buy cheap Q195 6m Length ERW Hot Rolled Metal Steel Round Tube Black Iron Carbon Steel Pipe from wholesalers

    Q195 6m Length ERW Hot Rolled Metal Steel Round Tube Black Iron Carbon Steel Pipe

    Ask Lasest Price
    Brand Name : IRUNT
    Model Number : Welded Steel Pipe
    Certification : ISO9001
    Price : US $600-1,800/ Ton
    Payment Terms : L/C, T/T
    Supply Ability : 500 Ton/Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Q195 6m Length ERW Hot Rolled Metal Steel Round Tube Black Iron Carbon Steel Pipe

    Q195 6m Length ERW Hot Rolled Metal Steel Round Tube Black Iron Carbon Steel Pipe


    Product Description

    Size:
    Outer Diameter: 1/8"-36"(10.3mm-914.4mm)
    Wall Thickness: 1.0mm-20mm
    Length: Random Length,SRL,DRL(4-14M)

    Steel Grade:
    A53 Gr. A, Gr B, A106 GR.A GR.B A333 GR1 GR3 GR6


    End:pland ends beveled ends

    Surface: Bare, Black,Lightly oiled, Hot dip galvanized,, Varnish coating/Anti rust oil, Protective Coatings, 3PE

    ASTM A53 /A106 Chemical Components and Machanical Property
    StandardSteel GradeChemical ComponentsMachanical Property
    CMnPSCuNiCrMoVTensile Strength (Mpa)Yield Strength(Mpa)Elongation (Mpa)
    ASTM A53A≤0.25≤0.95≤0.05≤0.045≤0.40≤0.40≤0.40≤0.15≤0.08≥330≥205≥29.5
    B≤0.30≤1.20≤0.05≤0.045≤0.40≤0.40≤0.40≤0.15≤0.08≥415≥240≥29.5
    StandardSteel GradeChemical ComponentsMachanical Property
    CSiMnPSCu ,NiCrMoVTensile Strength (Mpa)Yield Strength(Mpa)Elongation (Mpa)
    ASTM A106B≤0.30≥0.100.29-1.06≤0.035≤0.035≤0.40≤0.40≤0.15≤0.08≥415≥240≥30
    C≤0.35≥0.100.29-1.06≤0.035≤0.035≤0.40≤0.40≤0.15≤0.08≥485≥275≥30

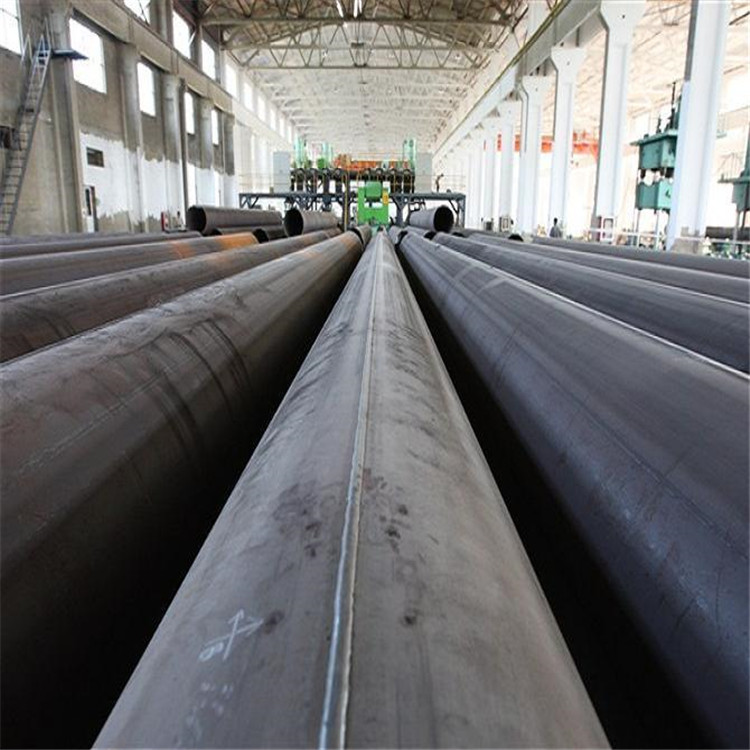

    Spiral welded pipe: low carbon carbon structural steel or low alloy structural steel strip according to a certain Angle of the spiral line (called forming Angle) rolled into the tube blank, and then welded pipe seam made, it can use a narrower strip to produce large diameter steel pipe. The specifications are denoted by outer diameter * wall thickness. The welded pipe shall ensure that the hydrostatic test, tensile strength and cold bending performance of the weld shall meet the requirements.
    Industrial TV internal inspection equipment: inspection of internal weld appearance quality.

    Magnetic particle flaw detector: inspection of large diameter steel pipe near surface defects.

    Ultrasonic automatic continuous flaw detector: to test transverse and longitudinal defects of full length welds of spiral steel pipes.

    Ultrasonic manual flaw detector: reinspection of defect of large diameter steel pipe, inspection of repair welding seam and weld quality after water pressure.

    X-ray automatic flaw detection machine and industrial TELEVISION imaging equipment: to test the internal quality of the full length welding seam of spiral steel pipe, sensitivity is not less than 4%.

    X-ray film equipment: the original weld and repair weld inspection, sensitivity is not less than 2%.

    2200 tons hydraulic press and microcomputer automatic recording system: test the bearing quality of each large diameter steel pipe.
