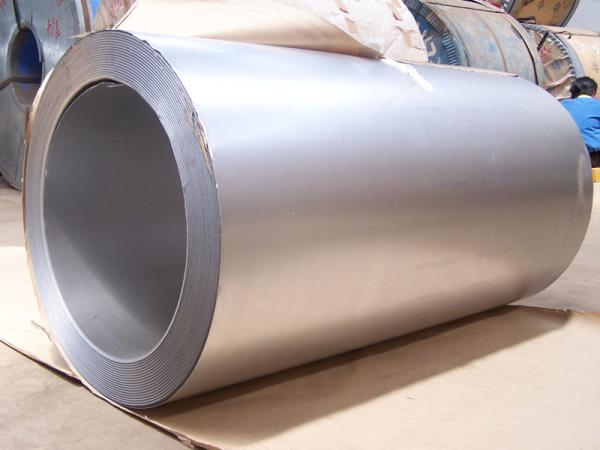

SGLCC 55% Galvalume Steel Coil Az70 Anti Finger G550 Zinc Coated Aluminium Sheet

    Buy cheap SGLCC 55% Galvalume Steel Coil Az70 Anti Finger G550 Zinc Coated Aluminium Sheet from wholesalers

    Buy cheap SGLCC 55% Galvalume Steel Coil Az70 Anti Finger G550 Zinc Coated Aluminium Sheet from wholesalers
    • Buy cheap SGLCC 55% Galvalume Steel Coil Az70 Anti Finger G550 Zinc Coated Aluminium Sheet from wholesalers
    • Buy cheap SGLCC 55% Galvalume Steel Coil Az70 Anti Finger G550 Zinc Coated Aluminium Sheet from wholesalers

    SGLCC 55% Galvalume Steel Coil Az70 Anti Finger G550 Zinc Coated Aluminium Sheet

    Ask Lasest Price
    Brand Name : IRUNT
    Model Number : Galvalume Steel Coil
    Certification : ISO9001
    Price : US $700-US $950/ Ton
    Supply Ability : 300000mt Per Year
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    SGLCC 55% Galvalume Steel Coil Az70 Anti Finger G550 Zinc Coated Aluminium Sheet

    SGLCC 55% Galvalume Steel Coil Az70 G550 1000mm Width Anti-Finger GL Zinc Coated Aluminium Metal Sheet Rolls


    MaterialCGCC,SGCH,G350,G450,G550,DX51D,DX52D,DX53D
    Thickness0.12-1.5mm
    Width600-1250mm
    Zinc coatingZ40-275g/m2
    Painting CoatingTop: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um
    PaintingNippon, KCC,AkzoNobel, etc
    Coating typePE, SMP, HDP, PVDF
    Resin con-structureDouble painting and double baking process
    Back side coating colorLight grey, white and so on
    Coil ID508 / 610MM
    Coil Weight3-5 Tons
    Annual Output Quantity350,000MT
    MOQ25 tons or one container
    PaymentT/T, LC, Western Union
    HardnessSoft hard(60),medium hard(HRB60-85),full hard(HRB85-95)
    Surface structureNorma, Matt, PVC film, wood grain, Flower Grained, embossed, etc
    Color chartRAL color number
    ApplicationPPGI is featured with light weight, good looking andAnti corrosion. It can be processed directly, mainly used for construction industry, home electronic apparatus industry, electronic apparatus industry, furniture industry and transportation.

    standardJis 3321EN10147/EN10327ASTMA792
    gradeSGLCCDX51D+AZ/DX52D+AZCS-B
    SGLC340S22DGD+AZSS GRADE 230
    SGLC400S25DGD+AZSS GRADE 255
    SGLC440S28DGD+AZSS GRADE 275
    SGLC490S32DGD+AZSS GRADE 340
    SGLC570S35DGD+AZSS GRADE 550
    SS55DGD+AZ

    The surface of aluminized zinc plate is unique smooth, flat and gorgeous star flower, and the base color is silver white. Special coating structure makes it have excellent corrosion resistance. The normal service life of the aluminized zinc plate can reach 25A, and the heat resistance is very good. It can be used in the high temperature environment of 315℃. Coating and paint film adhesion is good, has good processing performance, can be stamping, cutting, welding, etc.; Surface conductivity is good. Advantages:
    1, corrosion resistance: aluminized zinc plate has strong corrosion resistance, normal service life of up to 25 years, 3-6 times longer than galvanized plate, and stainless steel appropriate. The corrosion resistance of aluminized zinc plate comes from the maintenance function of the obstruction layer of aluminum, and the dedicated maintenance function of zinc. Aluminum forms an insoluble oxide layer to perform barrier maintenance when zinc is used for cutting, scratching and coating abrasion. Aluminum zinc alloy steel coil has been exposed to various atmospheric conditions for more than 20 years. It has been proved that 55% aluminum zinc plate is better than galvanized steel plate and 5% aluminum zinc plate in cutting edge maintenance.
    2, heat resistance: aluminized zinc plate has a high thermal reflectivity, suitable for roof data, aluminized zinc alloy steel plate itself is also excellent heat resistance, can be used for up to 315 degrees of high temperature environment.
    3, recoating :(film adhesion) aluminized zinc plate can maintain excellent adhesion with the film, without special pretreatment, you can directly spray paint or powder.
    4. Corrosion resistance after coating: The aluminized zinc plate itself after local coating and baking, some corrosion resistance is little reduced without spraying. The function is much better than electroplated color zinc and galvanized plate and hot galvanized plate.
    5, machinability :(shear, stamping, spot welding, seam welding) aluminized zinc steel plate has excellent processing function, can stamping, cutting, welding, etc., the coating has good adhesion and impact resistance.
    6, electrical conductivity: aluminum zinc plate surface through special wax disposal, can meet the needs of electromagnetic shielding.
