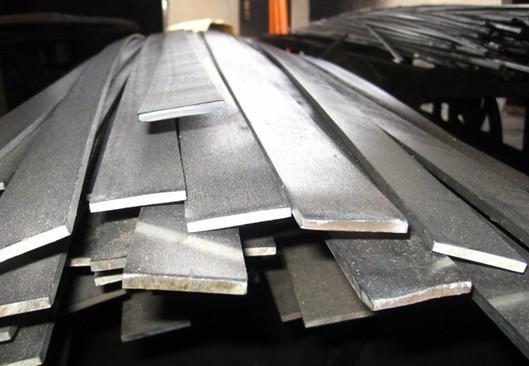

0.3mm-200mm Thickness Cold Drawn Flat Bar Mirror Finish 440C 201 304 304L

    Buy cheap 0.3mm-200mm Thickness Cold Drawn Flat Bar Mirror Finish 440C 201 304 304L from wholesalers

    Buy cheap 0.3mm-200mm Thickness Cold Drawn Flat Bar Mirror Finish 440C 201 304 304L from wholesalers
    • Buy cheap 0.3mm-200mm Thickness Cold Drawn Flat Bar Mirror Finish 440C 201 304 304L from wholesalers
    • Buy cheap 0.3mm-200mm Thickness Cold Drawn Flat Bar Mirror Finish 440C 201 304 304L from wholesalers

    0.3mm-200mm Thickness Cold Drawn Flat Bar Mirror Finish 440C 201 304 304L

    Ask Lasest Price
    Brand Name : IRUNT
    Model Number : Flat Steel Bars
    Certification : ISO9001
    Price : US $1,200-2,300/ Ton
    Payment Terms : L/C, T/T
    Supply Ability : 5000 Ton/Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    0.3mm-200mm Thickness Cold Drawn Flat Bar Mirror Finish 440C 201 304 304L

    Mirror Polished 304 316L 303 410 440c 430 Stainless Steel Flat Bar


    Standard

    ASTM A479,ASTM A276,ASTM A484, ASTM A582,

    ASME SA276, ASME SA484, GB/T1220, GB4226, etc.

    Material

    301, 304, 304L, 309S, 321, 316, 316L, 317, 317L, 310S, 201,202

    321, 329, 347, 347H 201, 202, 410, 420, 430, S20100, S20200, S30100, S30400, S30403, S30908, S31008, S31600, S31635, etc.

    SpecificationsRound barDiameter:0.1~500mm
    Angle barSize: 0.5mm*4mm*4mm~20mm*400mm*400mm
    Flat barThickness0.3~200mm
    Width1~2500mm
    Square barSize: 1mm*1mm~800mm*800mm
    Length2m, 5.8m, 6m, or as required.
    SurfaceBlack, peeled, polishing, bright, sand blast, hair line, etc.
    Price TermEx-work, FOB, CFR, CIF, etc.
    Export to

    Singapore, Canada, Indonesia, Korea, USA, UK, Thailand, Peru, Saudi Arabia,

    Viet Nam, India, Ukraine, Brazil, South Africa, etc.

    Delivery TimeStandard size is in stock,prompt delivery or as order's quantity.
    Package

    Export standard package, bundled or be required.

    The inner size of container is below:

    20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high)about 24-26CBM

    40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM

    40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM

    304L stainless steel is an extra-low carbon version of the 304 steel alloy. The lower carbon content in 304L minimizes
    deleterious carbide precipitation as a result of welding. 304L can therefore be used "as welded" in severe corrosion
    environments and it eliminates the need for annealing.
    This grade has slightly lower mechanical properties than the standard 304 grade, but it's nonetheless widely used thanks
    to its versatility. Like Type 304 stainless steel, it's commonly used in beer-brewing and wine-making, but also for purposes
    beyond the food industry such as in chemical containers, mining and construction. It's ideal for use in metal parts such as
    nuts and bolts that will be exposed to salt wate.


    CommodityStainless Steel Flat Bar
    Material304L
    StandardGBJISASTM/ASMEDIN
    022Cr19Ni10SUS304L304L1.4306
    Chemical CompositionCMnPS
    <=0.03<=2.00<=0.045<=0.03
    SiCrNNi
    <=0.7518-20<=0.18--13
    Thickness3mm-30mm
    Width10mm-300mm
    LengthProduce as customers' request
    SurfaceNo.1/HL/Birght
    manufactureHot Rolled
    PackingPacked in bundles with standard export sea-worthy package
    Delivery TimeWithin 15 working days, according to customers' quantities
    QualityHigh Quality.SGS inspection is accepted if needed
    Place of OriginTianjin
    Productivity500 MT/Month
    PaymentT/T,L/C
    MOQ5 Tons
    ApplicationFoodstuff, Gas, metallurgy, biology, electron, chemical etc.
    NoteWe can also do other materials

    SPECIFICATIONSALLOWABLE DEVIATION
    20x3~12mm(4/5" x 1/8"~12/25")

    WIDTH≤50MM

    THICKNESS≤20MM

    THICKNESS DEVITION ± 0.4MM

    25x3~15mm(1" x 1/8"~3/5")
    30x3~16mm(1-1/5" x 1/8"~16/25")
    35x3~16mm(1-2/5" x 1/8"~16/25")
    40x3~16mm(1-3/5" x 1/8"~16/25")
    45x4~16mm(1-4/5" x 4/25"~16/25")
    50x4~16mm(2" x 4/25"~16/25")

    1.WIDTH≤50MM

    THICKNESS DEVITION ± 0.8MM

    2.50<WIDTH≤75MM

    WIDTH DEVIATION ± 1.2MM

    3.75<WIDTH≤150MM

    WIDTH DEVIATION ± 1.5MM

    60x4~16mm(2-2/5" x 4/25"~16/25")
    65x4~16mm(2-3/5" x 4/25"~16/25")
    70x5~16mm(2-4/5" x 4/25"~16/25")
    75x5~16mm(3" x 1/5"~16/25")
    80x5~16mm(3-1/5" x 1/5"~16/25")
    90x5~16mm(3-1/2" x 1/5"~16/25")
    100x5~18mm(4" x 1/5"~7/10")

    Chemical composition
    (1) Composition index: the chemical composition of stainless steel flat steel belongs to the rolled steel series for general structure, and the main inspection index is C, Mn, P, S. According to the different brand, the content is different, the approximate range is C&lt; 0.08%, Mn: 2.0, P&lt; 0.035%, S&lt; 0.03%.
    (2) Inspection methods: The commonly used standard inspection methods for the above chemical compositions are GB223, JISG1211-1215, BS1837, BS Manual 19, г с т 22536, etc.
    The standard specifications
    GB/ T2101-89 (General requirements for acceptance, Packing, Marking and Quality Certificate of section steel); Gb9787-88 / GB9788-88 (hot rolling size, shape, weight and allowable deviation); Jisg3192-94 (Shape, Size, weight and Tolerances of hot-rolled sections); DIN17100 -- 80 (quality standard for ordinary structural steel); Technical specifications of general carbon type steel EK35 -- 88.
    According to the above standards, the goods should be delivered in bundles, and the bundling times and the length of the same bundle should meet the requirements. Generally delivered without packing, transportation and storage must pay attention to moisture.
    Mechanical properties of
    (1) Inspection method:
    Tensile test method. The commonly used standard examination methods are GB/T228-87, JISZ2201, JISZ2241, ASTMA370, г с т 1497, BS18, DIN50145 and so on;
    ② Bending test method. The commonly used standard examination methods are GB/T232-88, JISZ2204, JISZ2248, ASTME290, г с т 14019, DIN50111 and so on.
    (2) Performance indicators: The test items to evaluate performance are mainly tensile test and bending test. The index includes yield point, tensile strength, elongation and bending qualification.
    weight
    Weight per meter (kg) =0.00793 x Edge width (mm) x edge thickness (mm)
