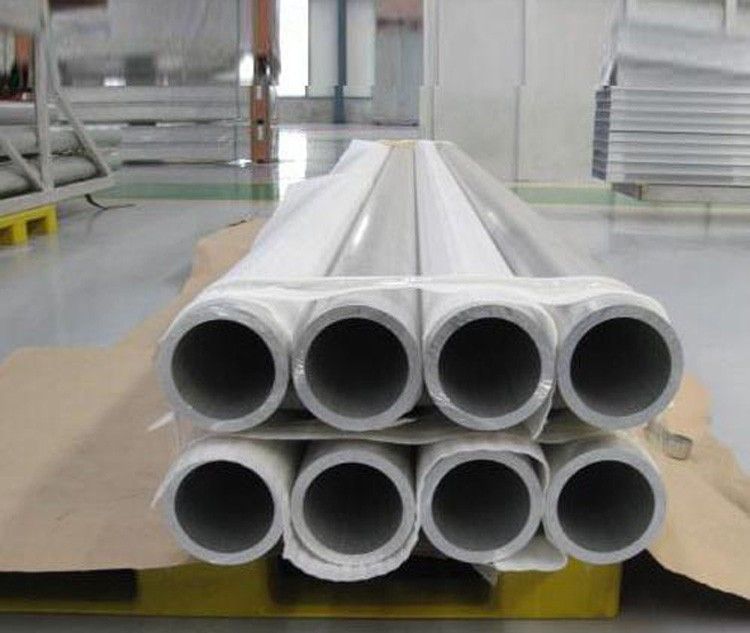

6061 Precision Aluminum Alloy Pipe 0.5mm-150mm Thickness Cold Drawn Small Diameter

    Buy cheap 6061 Precision Aluminum Alloy Pipe 0.5mm-150mm Thickness Cold Drawn Small Diameter from wholesalers

    Buy cheap 6061 Precision Aluminum Alloy Pipe 0.5mm-150mm Thickness Cold Drawn Small Diameter from wholesalers
    • Buy cheap 6061 Precision Aluminum Alloy Pipe 0.5mm-150mm Thickness Cold Drawn Small Diameter from wholesalers

    6061 Precision Aluminum Alloy Pipe 0.5mm-150mm Thickness Cold Drawn Small Diameter

    Ask Lasest Price
    Brand Name : IRUNT
    Model Number : Aluminum Alloy Pipe
    Certification : ISO9001
    Price : $4,000.00/Ton
    Payment Terms : L/C, T/T
    Supply Ability : 50000KG/Month
    Delivery Time : 7-10days
    • Product Details
    • Company Profile

    6061 Precision Aluminum Alloy Pipe 0.5mm-150mm Thickness Cold Drawn Small Diameter

    0.5mm~150mm Thickness Cold Drawn Small Diameter 6061 Alloy Precision Aluminum Tube/ Aluminium Pipe


    Standard

    GB/T 6893-2000,GB/T 4437.1-2000,GB/T 4437.2-2000,

    ASTM B210M-05,ASTM B234M-04,ASTM B241/B241M-02,

    JIS H4080-2006,


    Material

    6061,6063,1100,3003,1060,5083,5086,5052,5154,5056,5456,

    2024,2014,7075,7003,7005

    1060(L2),1200(L5),1100(L5-1),A1100TE,A1100BE,A3003TE,

    A3003TD,A5052TE,A5052TD,A5052BD,A5154TEMA5154TD,

    5154,A5454TE,5083(LF4),A5083TE,A5083TD,A5083BD,5A05,

    2A12,2024TE,2024TD,2A14,6061(T4,O,T42,T62,T6),A6061TD,

    6A02,6063(O,T4,T42,T6,T62,T83,T831,T832)

    Out Diameter2mm~2500mm
    Thickness0.5mm~150mm
    Length1m,3m,5.8m,6m,12m or as required
    Chemical treatment

    Oxidation, electrophoresis coating, fluorine carbon spraying,

    powder coating, wood grain transfer printing

    Mechanical

    processing method

    Mechanical drawing, mechanical polishing, sandblasting


    PackageStandard export seaworthy or as customers' requirements
    Application

    Pipe is widely used in all walks of life, such as cars, ships, aerospace,

    aviation, electronics, agriculture, mechanical and electrical, home,

    aluminum tube has been everywhere in our life

    Export

    Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,

    USA,Brazil,Thailand,Russia,

    Holland,Turkey,Kuwait,Korea,India,Egypt,Oman,Malaysia,Peru,

    ietnam,Mexico,etc


    The 6061 and 6063 are two types of aluminum. There are some differences.
    The difference between the two mainly includes three aspects, composition, use and production technology.
    6061 aluminum composition is more than 6063, hardness is stronger;
    6063 is mostly used for building aluminum doors and Windows, curtain wall frame, and 6061 is mostly used for welding, processing, etc.
    At the same time, the manufacturing process of 6061 is more complicated than that of 6063.
    1. Different components
    6063 aluminum alloy composition contains 0.4%Si and 0.7%Mg, hard material strength 295Mpa, soft material strength 111Mpa, used in tubular railings, furniture, frames, building extruded profiles.
    6061 aluminum alloy consists of 0.6%Mg, 0.25%Cu, 1.0%Mg, 0.09%Cr, hard strength 316Mpa, soft strength 127Mpa, used in corrosion resistant structures, trucks, ships, vehicles, furniture and so on.
    2. Different uses
    6063 aluminum alloy is widely used in the framework of building aluminum doors, Windows and curtain walls. In order to ensure that doors, Windows and curtain walls have high wind pressure resistance, assembly performance, corrosion resistance and decoration performance, the requirements for the comprehensive performance of aluminum alloy profiles are far higher than the standard of industrial profiles.
    6061 aluminum alloy is a high quality aluminum alloy product produced by heat treatment pre-drawing process, although its strength can not compare with 2000 series or 7000 series. However, its magnesium and silicon alloys have many characteristics, such as excellent processing performance, excellent welding characteristics and electroplating, good corrosion resistance, high toughness and no deformation after processing, dense material without defects and easy polishing, easy coloring film, excellent oxidation effect and other excellent characteristics.
    3. Different production techniques
    The T6 process of 6061 is: the solution treatment temperature is 530 degrees, and the T6 state made by artificial aging is 160 degrees for plates, 175 degrees for bars and plates with thickness above 80 degrees. The T5 status of the 6063 is air-cooled and artificial aging. Small deformation coefficient, easy to control, hardness is general, T6 state is water-cooled, large deformation coefficient, not easy to control, high hardness.
