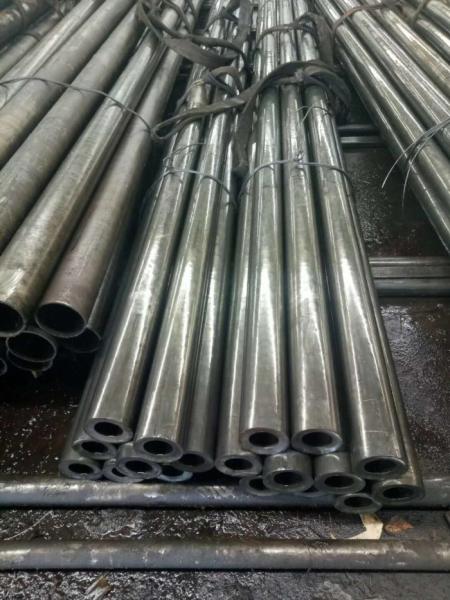

A519 Cold Drawn Precision Steel Pipe Galvanized Round Carbon Seamless

    Buy cheap A519 Cold Drawn Precision Steel Pipe Galvanized Round Carbon Seamless from wholesalers

    Buy cheap A519 Cold Drawn Precision Steel Pipe Galvanized Round Carbon Seamless from wholesalers
    • Buy cheap A519 Cold Drawn Precision Steel Pipe Galvanized Round Carbon Seamless from wholesalers
    • Buy cheap A519 Cold Drawn Precision Steel Pipe Galvanized Round Carbon Seamless from wholesalers

    A519 Cold Drawn Precision Steel Pipe Galvanized Round Carbon Seamless

    Ask Lasest Price
    Brand Name : IRUNT
    Model Number : Precision Steel Pipe
    Certification : ISO9001
    Price : US $650-US $780/ Ton
    Payment Terms : L/C, T/T
    Supply Ability : 5000 Ton/Month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    A519 Cold Drawn Precision Steel Pipe Galvanized Round Carbon Seamless

    ASTM A519 SAE 1010 1020 1026 Cold Drawn Precision Round Carbon Seamless Steel Pipe


    Standard & MaterialCarbon SteelASTM A519 StandardMT1010, MT1020, 1008, 1010, 1018, 1020, 1025, 1030, 1045, 1518
    JIS G3445 StandardSTKM11A STKM12A STKM12B STKM12C STKM13A STKM13B STKM13C STKM14A STKM14B STKM14C STKM15A STKM15C STKM16A STKM16C STKM17A STKM17C STKM18A STKM18B STKM18C STKM19A STKM19C STKM20A
    JIS G3473 StandardSTC370, STC440, STC510A, STC510, STC540, STC590A, STC590B
    DIN 2391 StandardSt 35, St45, St52
    EN 10297-1 StandardE235, E275, E315, E355, E470
    EN 10305-1 StandardE215, E235, E355
    EN 10305-4 StandardE215, E235, E355
    BS 6323-3 StandardHFS 3, HFS 4, HFS 5, HFS 8
    NF A49-311TU 37-b, TU 52-b, TU 56-b, TU XC35
    Alloy SteelASTM A519 Standard1345, 3140, 4130, 4135, 4140, 4150, 4320, 4340, 5120, 5130
    JIS G3429 StandardSTH11, 12 STH21, 122 STH31
    JIS G3441 StandardSCR420TK, SCM415TK, SCM418TK, SCM420TK, SCM430TK, SCM440TK
    Stainless SteelASTM A511 StandardMT304, MT304L, MT310S, MT316, MT316L, MT317, MT321, MT347, MT403, MT410, MT431
    ISO StandardNACE MR-0175


    Size
    Size RangeTolerance
    OD6-325mm-0.035 -- +0.045mm
    ID2-250mm±0.035mm
    WT1-32mmdepends on sizes
    Lengthrandom or fixed length+0-3.5mm
    Straightness0.15:1000, 0.4:1000, 0.5:1000 1:1000 or customized
    Surface RoughnessRa 0.02-0.4μm

    Steel GradeC(%)Si(%)Mn(%)P(%)S(%)Nb/V(%)
    STKM11A≤0.12≤0.35≤0.60≤0.040≤0.040-
    STKM12A≤0.20≤0.35≤0.60≤0.040≤0.040-
    STKM12B≤0.20≤0.35≤0.60≤0.040≤0.040-
    STKM12C≤0.20≤0.35≤0.60≤0.040≤0.040-
    STKM13A≤0.25≤0.350.30~0.90≤0.040≤0.040-
    STKM13B≤0.25≤0.350.30~0.90≤0.040≤0.040-
    STKM13C≤0.25≤0.350.30~0.90≤0.040≤0.040-
    STKM14A≤0.30≤0.350.30~1.00≤0.040≤0.040-
    STKM14B≤0.30≤0.350.30~1.00≤0.040≤0.040-
    STKM14C≤0.30≤0.350.30~1.00≤0.040≤0.040-
    STKM15A0.25~0.35≤0.350.30~1.00≤0.040≤0.040-
    STKM15C0.25~0.35≤0.350.30~1.00≤0.040≤0.040-

    Steel GradeTensile Strength(N/mm²)Yield Strength(N/mm²)
    STKM11A≥290-
    STKM12A≥340≥175
    STKM12B≥390≥275
    STKM12C≥470≥355
    STKM13A≥370≥215
    STKM13B≥440≥305
    STKM13C≥510≥380
    STKM14A≥410≥245
    STKM14B≥500≥355
    STKM14C≥550≥410
    STKM15A≥470≥275
    STKM15C≥580≥430

    Is there any difference between stainless steel precision pipe and ordinary pipe?

    There is. 1, pipe diameter size tolerance is different: stainless steel precision pipe and ordinary pipe the most fundamental difference lies in its precision. Ordinary stainless steel pipe is usually used for decoration and industry, the tolerance requirements of pipe diameter size is small, the precision of pipe diameter tolerance is generally more than ±0.1mm. Precision stainless steel pipe is more attention to the tolerance requirements of pipe diameter size, generally controlled within ±0.05mm. 2, the surface treatment is different: stainless steel precision tube surface treatment is more stringent than ordinary stainless steel tube. The surface of the precision stainless steel tube has the following requirements: the surface of the tube body is free from scratches and scars; The wall thickness is uniform and smooth, and the pipe mouth is complete without burrs; The inner wall is smooth, there is no leakage welding trachoma at the weld, and the surface brightness is more than 200 mesh. Usually, the surface of ordinary pipe is rough and needs to be treated twice. In the appearance of the advantage than ordinary stainless steel well more than a little bit. 3, performance is different: ordinary stainless steel pipe commonly used material is generally 201, slightly requirements will use 304,316L almost rarely used. The commonly used material of stainless steel precision tube is generally 304 and 316L, which is more prominent than ordinary stainless steel tube in material performance.
